CC13 72x25x8mm SERRATED ADJ STEP CLAMP

Name: CC13 72x25x8mm SERRATED ADJ STEP CLAMP
SKU: IND4251055D
Availability: OutOfStock

Clamp Fixture Components: CC13 – Adjustable Stepped Clamp

CC13 – Adjustable Stepped Clamp
Low profile clamp for holding thin parts and keeping top surfaces clear for machining.
Material: Medium Carbon Steel.
Heat Treated To: hrc 38.
Surface Finish: Black Oxide.
Jaws: Surface treated with high frequency quenching.

Out of stock

Description
Additional information

SKU : IND4251055D

Clamp Fixture Components: CC13 – Adjustable Stepped Clamp

CC13 – Adjustable Stepped Clamp
Low profile clamp for holding thin parts and keeping top surfaces clear for machining.
Material: Medium Carbon Steel.
Heat Treated To: hrc 38.
Surface Finish: Black Oxide.
Jaws: Surface treated with high frequency quenching.

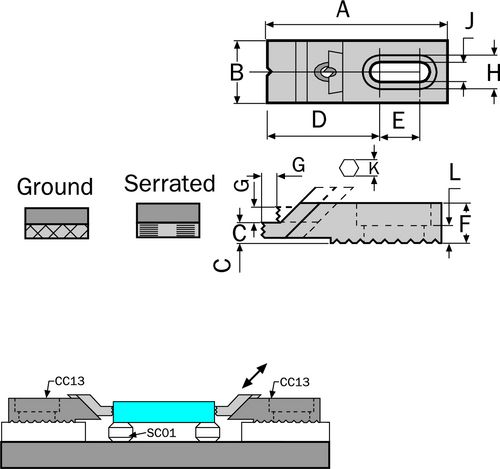

Specification :
AxBxC (Length x Width x Height) : 73.45 x 25 x 18mm
Brand : Indexa
Dim D : 46.95
Dim E : 16.5
Dim F : 16.5
Dim G : 7
Dim H : 14
Dim J : 8.5
Dim K : 5
Dim L : 7
eCl@ss Code : 23149090
Product Number : CC130108
Supplier Part No. : CC13
Type : Serrated
UNSPSC Code : 23153402
Weight each : 0.18kg
