CC13 138x40x14mm SERRATED ADJ STEP CLAMP

Name: CC13 138x40x14mm SERRATED ADJ STEP CLAMP
SKU: IND4251055H
Availability: OutOfStock

Clamp Fixture Components: CC13 – Adjustable Stepped Clamp

CC13 – Adjustable Stepped Clamp
Low profile clamp for holding thin parts and keeping top surfaces clear for machining.
Material: Medium Carbon Steel.
Heat Treated To: hrc 38.
Surface Finish: Black Oxide.
Jaws: Surface treated with high frequency quenching.

Out of stock

Description
Additional information

SKU : IND4251055H

Clamp Fixture Components: CC13 – Adjustable Stepped Clamp

CC13 – Adjustable Stepped Clamp
Low profile clamp for holding thin parts and keeping top surfaces clear for machining.
Material: Medium Carbon Steel.
Heat Treated To: hrc 38.
Surface Finish: Black Oxide.
Jaws: Surface treated with high frequency quenching.

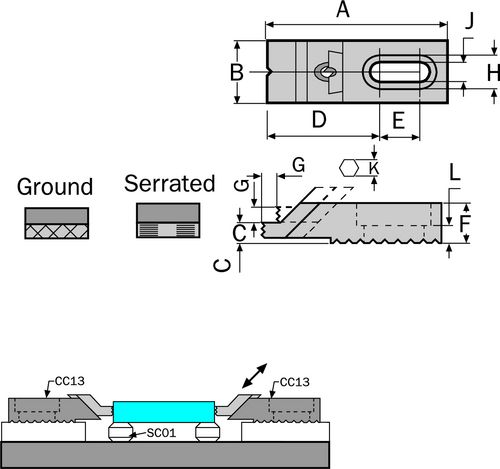

Specification :
AxBxC (Length x Width x Height) : 133.14 x 40 x 14mm
Brand : Indexa
Dim D : 90.00
Dim E : 30.0
Dim F : 30.0
Dim G : 14
Dim H : 26
Dim J : 17.0
Dim K : 8
Dim L : 13
eCl@ss Code : 23149090
Product Number : CC130316
Supplier Part No. : CC13
Type : Ground
UNSPSC Code : 23153402
Weight each : 0.85kg
