CC13 105x35x10mm SERRATED ADJ STEP CLAMP

Name: CC13 105x35x10mm SERRATED ADJ STEP CLAMP
SKU: IND4251055F
Availability: OutOfStock

Clamp Fixture Components: CC13 – Adjustable Stepped Clamp

CC13 – Adjustable Stepped Clamp
Low profile clamp for holding thin parts and keeping top surfaces clear for machining.
Material: Medium Carbon Steel.
Heat Treated To: hrc 38.
Surface Finish: Black Oxide.
Jaws: Surface treated with high frequency quenching.

Out of stock

Description
Additional information

SKU : IND4251055F

Clamp Fixture Components: CC13 – Adjustable Stepped Clamp

CC13 – Adjustable Stepped Clamp
Low profile clamp for holding thin parts and keeping top surfaces clear for machining.
Material: Medium Carbon Steel.
Heat Treated To: hrc 38.
Surface Finish: Black Oxide.
Jaws: Surface treated with high frequency quenching.

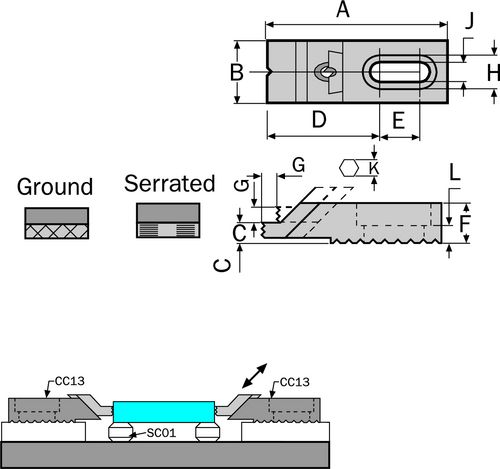

Specification :
AxBxC (Length x Width x Height) : 106.64 x 35 x 27.5mm
Brand : Indexa
Dim D : 64.14
Dim E : 30.0
Dim F : 22.0
Dim G : 12
Dim H : 20
Dim J : 13.5
Dim K : 6
Dim L : 9
eCl@ss Code : 23149090
Product Number : CC130212
Supplier Part No. : CC13
Type : Serrated
UNSPSC Code : 23153402
Weight each : 0.52kg
