CC08 50mm SWING CLAMP

Clamp Fixture Components: CC08 – Swing Clamp

CC08 – Swing Clamp
A small clamp with good holding power, ideal for tight spaces, full swing away feature permits easy part loading.
Material: Case Hardened Steel.
Hardness: HRC 38 – 42.
Surface Finish: Black Oxide.

Out of stock

SKU : IND4251040G

Clamp Fixture Components: CC08 – Swing Clamp

CC08 – Swing Clamp
A small clamp with good holding power, ideal for tight spaces, full swing away feature permits easy part loading.
Material: Case Hardened Steel.
Hardness: HRC 38 – 42.
Surface Finish: Black Oxide.

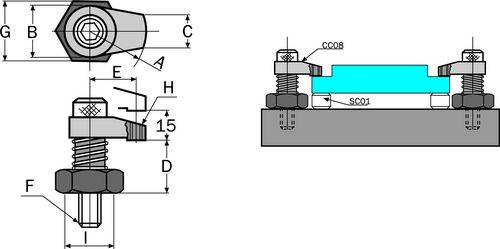

Specification :
AxB (Length x Width) : 50 x 32mm
Brand : Indexa
Dim C : 20
Dim D : 45
Dim E : 40
Dim F : M12
Dim G : 36
Dim H : M12
Dim I : 26
eCl@ss Code : 23149090
Product Number : CC080212
Supplier Part No. : CC08
UNSPSC Code : 23153402
Weight each : 0.50kg

Weight 1 kg
SKU: IND4251040G Categories: , , ,
