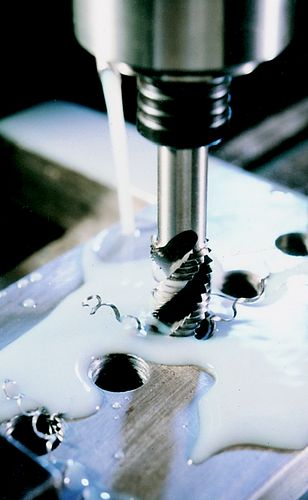

9/16″x18 UNF HSS GT SPIRAL POINT TAP
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Out of stock
SKU : SHR0851160E
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Shank Diameter : 11.20
Size – Pitch : 9/16″ x 18
Square A/F : 9.00
UNSPSC Code : 27112806
Weight each : 71g
| Weight | 1 kg |
|---|
