80mm TRI-SQ MILLING CUTTER (VER II)
Indexa âTri Squareâ 90° Shell Mills – For TPKN 1603
âTri Squareâ 90° Shell Mills for TPKN 1603

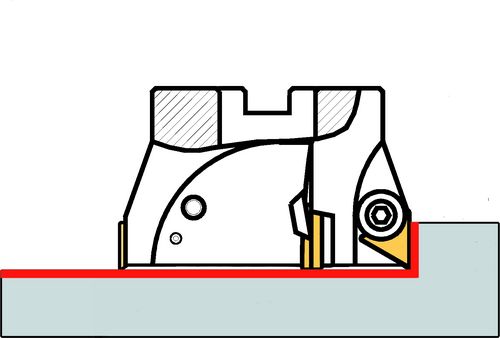

Uses top clamping triangular inserts to produce a 90° shoulder at the edge of a milled face. This is of major benefit when taking a number of cuts across a face as the shoulder produced is without steps.
Out of stock
SKU : IND1393420K
Indexa âTri Squareâ 90° Shell Mills – For TPKN 1603
âTri Squareâ 90° Shell Mills for TPKN 1603
Uses top clamping triangular inserts to produce a 90° shoulder at the edge of a milled face. This is of major benefit when taking a number of cuts across a face as the shoulder produced is without steps.

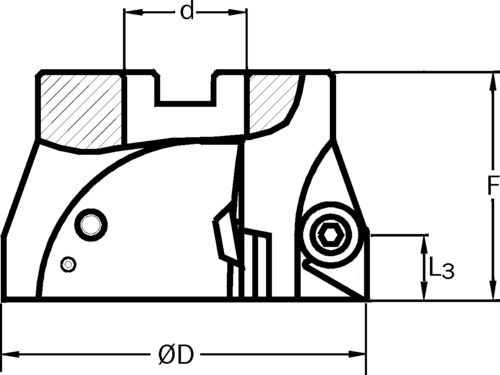

Specification :
Brand : Indexa
D : 32
Diameter (mm) : 80
eCl@ss Code : 28039190
F : 50
L3 : 13
Overall Weight : 1.11
Suitable For : TPKN 1603
Supplier Part No. : 0130.90.080
UNSPSC Code : 23242106
Weight each : 1200g
Z : 5
| Weight | 1 kg |
|---|
