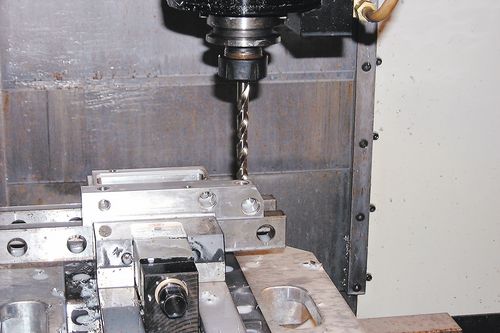

7.70mm DIA COBALT DRILL FOR STAINLESS STEEL
HSS-Co Straight Shank Drills
Metric
Heavy duty drill made of 8% cobalt material with excellent heat resistance. To drill steels with tensile strength up to 1,400 N/mm2, very hard bronze, stainless steels as well as heat and acid resistant steels. Point angle: 135°. Helix angle: normal. Web thickness: strengthened. Relief angle: normal. Tolerance of diameter: h8. Tolerance of shank: f11. Supply unit. All diameters – 1 pce. Manufacturing Standard: BS 328, DIN 338B.
Out of stock
SKUÂ :Â KEN0261540K
HSS-Co Straight Shank Drills
Metric
Heavy duty drill made of 8% cobalt material with excellent heat resistance. To drill steels with tensile strength up to 1,400 N/mm2, very hard bronze, stainless steels as well as heat and acid resistant steels. Point angle: 135°. Helix angle: normal. Web thickness: strengthened. Relief angle: normal. Tolerance of diameter: h8. Tolerance of shank: f11. Supply unit. All diameters – 1 pce. Manufacturing Standard: BS 328, DIN 338B.
Specification :
Brand : Kennedy Industrial
Diameter (mm)Â :Â 7.70 | mm
eCl@ss Code : 21010101
Overall Weight : 0.032
UNSPSC Code : 23241606
| Weight | 1 kg |
|---|
