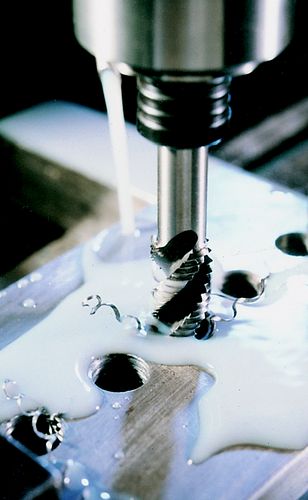

7/16″x20 UNF HSS GT SPIRAL POINT TAP
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Out of stock
SKU : SHR0851140E
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Shank Diameter : 8.00
Size – Pitch : 7/16″ x 20
Square A/F : 6.30
UNSPSC Code : 27112806
Weight each : 33g
| Weight | 1 kg |
|---|
