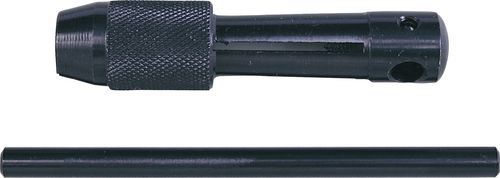

7.0-9.4mm UK CHUCK TYPE TAP WRENCH-STANDARD
Kennedy Chuck Style Tap Wrenches
English Type
Used in hand tapping operations and provide the reach and leverage needed for accurate tapping in tight spaces. Heavy duty ductile steel body with knurled chuck, four equalising jaws to hold the tap true and sliding T-bar which can be used when tapping against a shoulder or other obstructions. Individually boxed.
Out of stock
SKUÂ :Â KEN5188900K
Kennedy Chuck Style Tap Wrenches
English Type
Used in hand tapping operations and provide the reach and leverage needed for accurate tapping in tight spaces. Heavy duty ductile steel body with knurled chuck, four equalising jaws to hold the tap true and sliding T-bar which can be used when tapping against a shoulder or other obstructions. Individually boxed.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21020301
Length (mm)Â :Â 90
Overall Depth : 50
Overall Length : 130
Overall Weight : 0.21
Overall Width : 50
Square Size (mm)Â :Â 6.0 – 8.0
Type : Standard
UNSPSC Code : 27111720
Weight each : 205g
| Weight | 1 kg |
|---|
