63mm TRI-SQ MILLING CUTTER (VER II)
Indexa âTri Squareâ 90° Shell Mills – For TPKN 1603
âTri Squareâ 90° Shell Mills for TPKN 1603

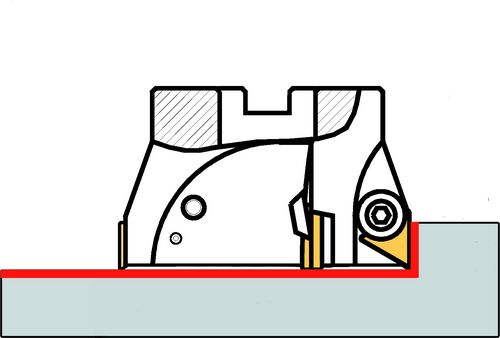

Uses top clamping triangular inserts to produce a 90° shoulder at the edge of a milled face. This is of major benefit when taking a number of cuts across a face as the shoulder produced is without steps.
Out of stock
SKU : IND1393400K
Indexa âTri Squareâ 90° Shell Mills – For TPKN 1603
âTri Squareâ 90° Shell Mills for TPKN 1603
Uses top clamping triangular inserts to produce a 90° shoulder at the edge of a milled face. This is of major benefit when taking a number of cuts across a face as the shoulder produced is without steps.

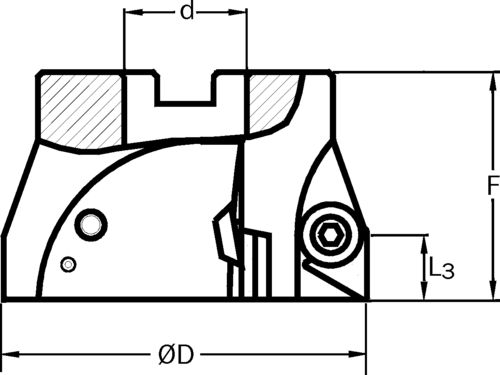

Specification :
Brand : Indexa
D : 27
Diameter (mm) : 63
eCl@ss Code : 28039190
F : 50
L3 : 13
Overall Weight : 0.655
Suitable For : TPKN 1603
Supplier Part No. : 0130.90.063
UNSPSC Code : 23242106
Weight each : 655g
Z : 4
| Weight | 1 kg |
|---|
