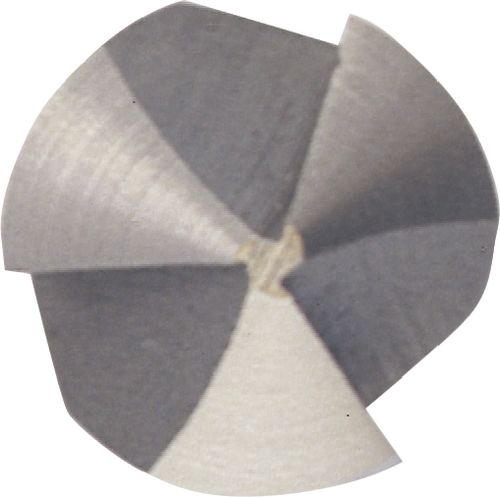

50mm 90DEG HSS-COBALT 3FL T/S COUNTERSINK
Rp3.183.000
Sherwood HSS-Co 5% 3 Flute Countersink – Taper Shank
Suitable for deburring and chamfering most metals and plastics. Manufactured to BS328:Part 5:1983. 90° inclusive angle.
Out of stock
SKU : SHR0201890K
Sherwood HSS-Co 5% 3 Flute Countersink – Taper Shank
Suitable for deburring and chamfering most metals and plastics. Manufactured to BS328:Part 5:1983. 90° inclusive angle.
Specification :
Brand : Sherwood
Cutting Diameter : 50.mm
eCl@ss Code : 21010101
Morse Taper : 3MT
Overall Depth : 60
Overall Length : 165
Overall Weight : 0.77
Overall Width : 60
UNSPSC Code : 23241603
| Weight | 1 kg |
|---|
