5.6-6.2mm JIS CHUCK TYPE TAP WRENCH-LONG
Kennedy Chuck Type Tap Wrench Set – Japanese Type
Japanese Type

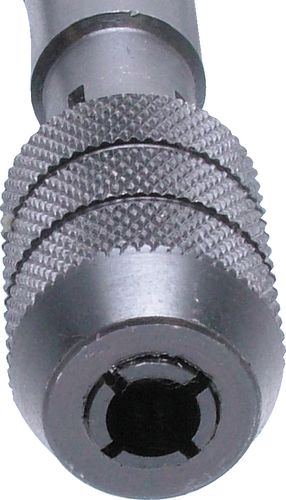

Used in Hand Tapping operations and provide the reach and leverage needed for accurate tapping. Heavy duty ductile steel body with knurled chuck, stepped chuck jaws and four point clamping increase the range of tap sizes which can be used in the wrench fitted with a fixed T-bar. Individually boxed.
Out of stock
SKUÂ :Â KEN5188690K
Kennedy Chuck Type Tap Wrench Set – Japanese Type
Japanese Type
Used in Hand Tapping operations and provide the reach and leverage needed for accurate tapping. Heavy duty ductile steel body with knurled chuck, stepped chuck jaws and four point clamping increase the range of tap sizes which can be used in the wrench fitted with a fixed T-bar. Individually boxed.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21020301
Length (mm)Â :Â 120 mm
Overall Depth : 30
Overall Length : 125
Overall Weight : 0.27
Overall Width : 120
Square Size (mm)Â :Â 5.6 – 6.2
Style : Long Reach
UNSPSC Code : 27111720
Weight each : 240g
| Weight | 1 kg |
|---|
