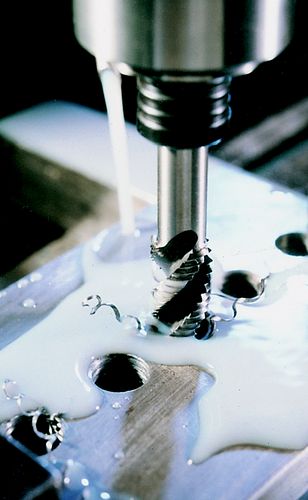

5/16″x24 UNF HSS GT SPIRAL POINT TAP
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Out of stock
SKU : SHR0851120E
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Shank Diameter : 8.00
Size – Pitch : 5/16″ x 24
Square A/F : 6.30
UNSPSC Code : 27112806
Weight each : 23g
| Weight | 1 kg |
|---|
