5.00mm Q-COAT CARBIDE DRILL 5xD

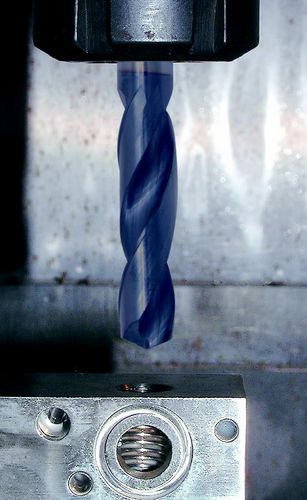

SwissTech Solid Carbide Q-Coat Drill – 5 x D Solid
5 x D Solid
SwissTech Q-Coated carbide drills are for drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic. They are self-centering with a point angle: 140.
Tolerance of diameter: m7.
tolerance of shank: h6.
Manufactured to DIN 6537.
Out of stock
SKU : SWT1585550S
SwissTech Solid Carbide Q-Coat Drill – 5 x D Solid
5 x D Solid
SwissTech Q-Coated carbide drills are for drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic. They are self-centering with a point angle: 140.
Tolerance of diameter: m7.
tolerance of shank: h6.
Manufactured to DIN 6537.
Specification :
Brand : Swiss Tech
Diameter (mm) : 5.00
eCl@ss Code : 21010101
Overall Weight : 0.024
Supplier Part No. : SWT1585550S
UNSPSC Code : 23241605
| Weight | 1 kg |
|---|
