4.20mm Q-COAT CARBIDE DRILL 3xD

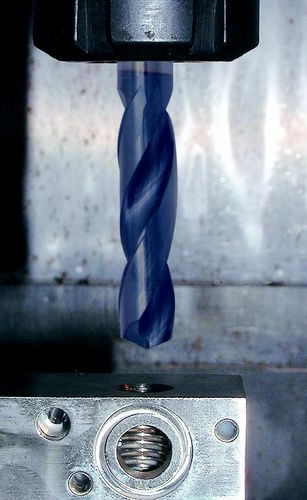

Solid Carbide Q-Coat Drill
For drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic, self-centering.
Point angle: 140°, tolerance of diameter: m7, tolerance of shank: h6. Manufactured to DIN 6537.
Out of stock
SKU : SWT1583542S
Solid Carbide Q-Coat Drill
For drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic, self-centering.
Point angle: 140°, tolerance of diameter: m7, tolerance of shank: h6. Manufactured to DIN 6537.
Specification :
Brand : Swiss Tech
Diameter (mm) : 4.20
eCl@ss Code : 21010101
Overall Weight : 0.02
Supplier Part No. : SWT1583542S
UNSPSC Code : 23241605
| Weight | 1 kg |
|---|
