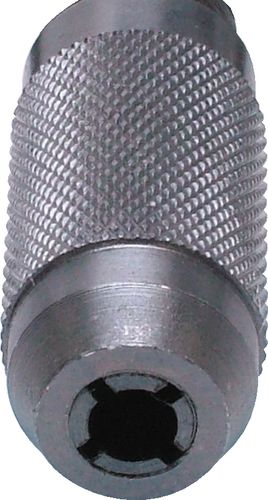

4.0-5.0mm JIS CHUCK TYPE TAP WRENCH-STANDARD
Kennedy Chuck Type Tap Wrench Set – Japanese Type
Japanese Type
Used in Hand Tapping operations and provide the reach and leverage needed for accurate tapping. Heavy duty ductile steel body with knurled chuck, stepped chuck jaws and four point clamping increase the range of tap sizes which can be used in the wrench fitted with a fixed T-bar. Individually boxed.
Out of stock
SKU : KEN5188550K
Kennedy Chuck Type Tap Wrench Set – Japanese Type
Japanese Type
Used in Hand Tapping operations and provide the reach and leverage needed for accurate tapping. Heavy duty ductile steel body with knurled chuck, stepped chuck jaws and four point clamping increase the range of tap sizes which can be used in the wrench fitted with a fixed T-bar. Individually boxed.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21020301
Length (mm) : 60 mm
Overall Depth : 30
Overall Length : 100
Overall Weight : 0.08
Overall Width : 70
Square Size (mm) : 4.0 – 5.0
Style : Standard Length
UNSPSC Code : 27111720
Weight each : 75g
| Weight | 1 kg |
|---|
