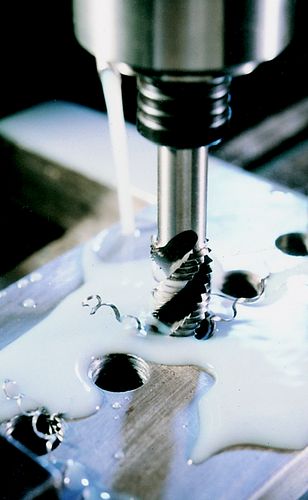

3/4″x16 UNF HSS GT SPIRAL POINT TAP
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Out of stock
SKU : SHR0851180E
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Shank Diameter : 14.00
Size – Pitch : 3/4″ x 16
Square A/F : 11.20
UNSPSC Code : 27112806
Weight each : 156g
| Weight | 1 kg |
|---|
