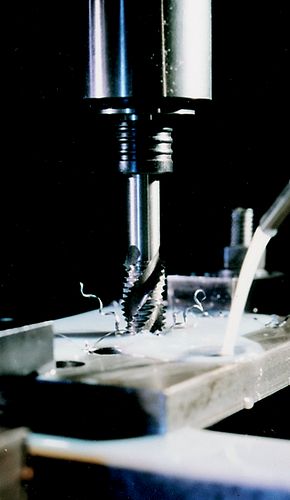

3/4″x10 BSW HSS GT SPIRAL FLUTE TAP
Spiral Flute
Out of stock
SKU : SHR0851430F
Spiral Flute
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Shank Diameter : 14.00
Size – Pitch : 3/4″ x 10
Square A/F : 11.20
UNSPSC Code : 27112806
Weight each : 75g
| Weight | 1 kg |
|---|
