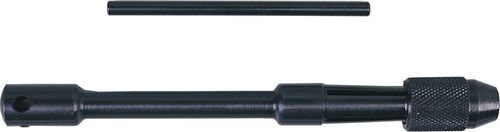

3.0-5.0mm UK CHUCK TYPE TAP WRENCH-LONG
Kennedy Chuck Style Tap Wrenches
English Type
Used in hand tapping operations and provide the reach and leverage needed for accurate tapping in tight spaces. Heavy duty ductile steel body with knurled chuck, four equalising jaws to hold the tap true and sliding T-bar which can be used when tapping against a shoulder or other obstructions. Individually boxed.
Out of stock
SKU : KEN5188920K
Kennedy Chuck Style Tap Wrenches
English Type
Used in hand tapping operations and provide the reach and leverage needed for accurate tapping in tight spaces. Heavy duty ductile steel body with knurled chuck, four equalising jaws to hold the tap true and sliding T-bar which can be used when tapping against a shoulder or other obstructions. Individually boxed.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21020301
Length (mm) : 165
Overall Depth : 30
Overall Length : 175
Overall Weight : 0.17
Overall Width : 50
Square Size (mm) : 3.5 – 5.0
Type : Long
UNSPSC Code : 27111720
Weight each : 170g
| Weight | 1 kg |
|---|
