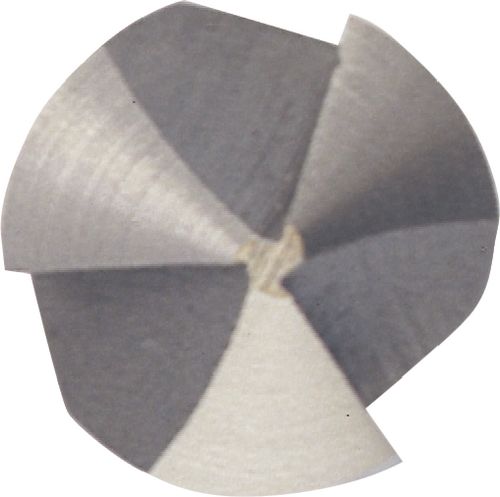

25mm 90DEG HSS-COBALT 3FL T/S COUNTERSINK
Rp1.582.000
Sherwood HSS-Co 5% 3 Flute Countersink – Taper Shank
Suitable for deburring and chamfering most metals and plastics. Manufactured to BS328:Part 5:1983. 90° inclusive angle.
Out of stock
SKU : SHR0201590K
Sherwood HSS-Co 5% 3 Flute Countersink – Taper Shank
Suitable for deburring and chamfering most metals and plastics. Manufactured to BS328:Part 5:1983. 90° inclusive angle.
Specification :
Brand : Sherwood
Cutting Diameter : 25.0mm
eCl@ss Code : 21010101
Morse Taper : 2MT
Overall Depth : 30
Overall Length : 130
Overall Weight : 0.215
Overall Width : 30
UNSPSC Code : 23241603
| Weight | 1 kg |
|---|
