200mm HORIZONTAL & VERTICAL ROTARY TABLE
Indexa Type SOPP Horizontal and Vertical Rotary Table
Rotary Tables
With a disengageable worm gear which allows rapid indexing. One rotation of handle equals four degrees on collar. The table is made of high grade cast iron. Works as an indexing unit in the vertical position as well as a conventional rotary table for circular cutting, boring or angle setting, etc. Optional dividing plates are available separately.
Accuracy:
Parallelism of clamping surface to base: 0.020mm
Flatness of clamping surface: 0.015mm
True running cylindrical centre bore: 0.020mm
True running of tapered centre bore: 0.020mm
Squareness of clamping surface to centre slot: 0.010mm
Out of stock
SKU : IND4370500K
Indexa Type SOPP Horizontal and Vertical Rotary Table
Rotary Tables
With a disengageable worm gear which allows rapid indexing. One rotation of handle equals four degrees on collar. The table is made of high grade cast iron. Works as an indexing unit in the vertical position as well as a conventional rotary table for circular cutting, boring or angle setting, etc. Optional dividing plates are available separately.
Accuracy:
Parallelism of clamping surface to base: 0.020mm
Flatness of clamping surface: 0.015mm
True running cylindrical centre bore: 0.020mm
True running of tapered centre bore: 0.020mm
Squareness of clamping surface to centre slot: 0.010mm
Specification :
Brand : Indexa
Centre Hole : 3 MT
Diameter D : 200mm

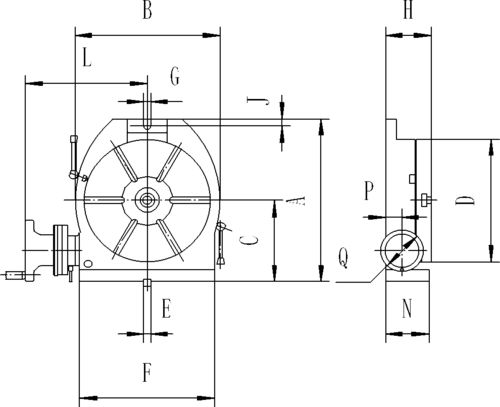

Dim A : 285
Dim B : 236
Dim E : 14
Dim F : 208
Dim G : 14
Dim H : 100
Dim J : 15
Dim L : 211
Dim N : 99
Dim P : 48
Dim Q : 125
Maximum Capacity : 150
Overall Depth : 440
Overall Length : 205
Overall Weight : 42
Overall Width : 450
Supplier Part No. : 7-296-200S
T-slots : 4
UNSPSC Code : 23152201
Weight each : 42kg
