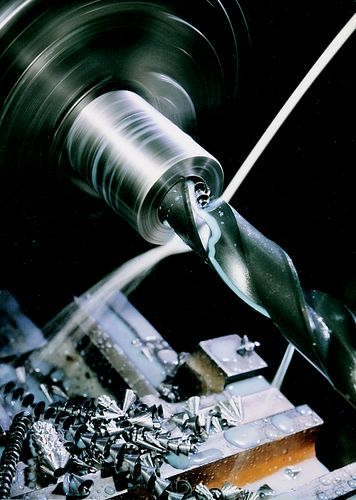

20.75mm HSS T/S DRILL
HSS Taper Shank Drills – Metric Continued
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°, helix angle: normal, relief angle: normal, tolerance of diameter: h8.
Manufacturing Standard: DIN 345.
Out of stock
SKUÂ :Â SHR0252794E
HSS Taper Shank Drills – Metric Continued
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°, helix angle: normal, relief angle: normal, tolerance of diameter: h8.
Manufacturing Standard: DIN 345.
Specification :
Brand : Sherwood
Diameter (mm)Â :Â 20.75
eCl@ss Code : 21010101
Flute Length (mm)Â :Â 145
Overall Length (mm)Â :Â 243
Overall Weight : 0.39
UNSPSC Code : 23241639
| Weight | 1 kg |
|---|
