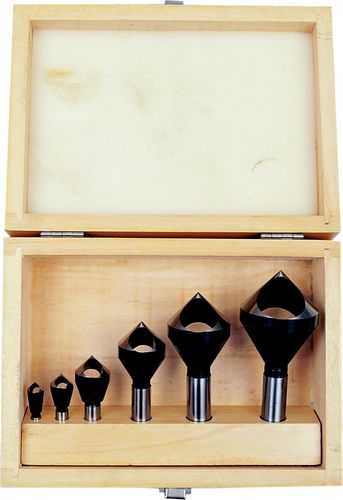

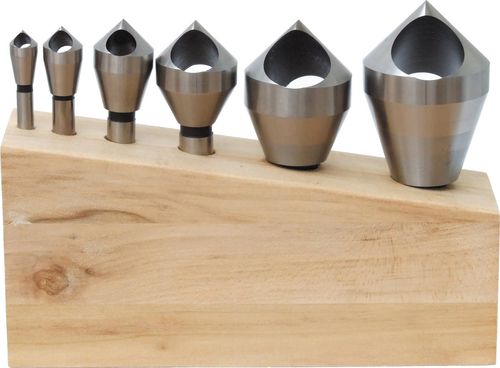

2-30mm 90DEG HSS-COBALT S/S COUNTERSINK SET
Rp4.775.000
HSS-Co 5% Countersink Set
6 Piece Set
Straight shank, ground flute 90° angle.
Sizes: 2 – 5mm, 5 – 10mm, 10 – 15mm, 15 – 20mm, 20 – 25mm and 25 – 30mm.
Out of stock
SKU : SHR0209020B
HSS-Co 5% Countersink Set
6 Piece Set
Straight shank, ground flute 90° angle.
Sizes: 2 – 5mm, 5 – 10mm, 10 – 15mm, 15 – 20mm, 20 – 25mm and 25 – 30mm.
Specification :
Brand : Sherwood
eCl@ss Code : 21010101
No. of Pieces : 6
Overall Weight : 1.2
Shank Style : Straight
UNSPSC Code : 23241603
Weight each : 1.2kg
| Weight | 1 kg |
|---|
Related products
-
M10x1.50mm CHASER DIE 20mm D/HD TYPE S20Read moreCoventry Type Chaser Dies – ISO Metric: Throat Angle S20
Cutting takes place only on the throat and the first full tooth; the remaining threads are above centre height and act as a nut, ensuring accurate pitch. Ideal for batch work or continuous production of threaded steel bar. Coventry dies are not interchangeable. An original set of new dies must always be used together. When taken from the diehead the set of dies should be retained in its box until required again.
Throat Angles
20° for general work and soft steels – supplied as standard.
33° âBâ type for cutting brass, available on request.Grinding Dies
Only two angles are ground on Coventry dies, the throat angle and the rake angle and in the particular case of Holozone dies only the throat angle is ground. All dies in a set must be ground on the throat at the same time and since they cannot be accurately ground by hand, a die grinding fixture must be used.Marking & Materials
Each die is marked with: diameter, pitch, type of die and gauge number. Non-standard or special dies are marked with an SD number which should be quoted when re-ordering. When a set of dies has been re-ground several times by grinding the throat angle, the height of the cutting edge rises above centre. This condition must be rectified by grinding the rake angle until the die height is correct according to the number shown on the die. -
1/2″ (12mm) CHS COVENTRYDIE HEADRead moreWS Style Coventry Dies Head
Robust and reliable. Can be used on a variety of manual or automatic* machines. Can be supplied with any other straight or tapered shank. Takes standard Coventry type chasers. Repair parts readily available.
*Supplied with spring band closer. Set for single cut only. -
M6x1.00mm CHASER DIE 20mm D/HD TYPE S20Read moreCoventry Type Chaser Dies – ISO Metric: Throat Angle S20
Cutting takes place only on the throat and the first full tooth; the remaining threads are above centre height and act as a nut, ensuring accurate pitch. Ideal for batch work or continuous production of threaded steel bar. Coventry dies are not interchangeable. An original set of new dies must always be used together. When taken from the diehead the set of dies should be retained in its box until required again.
Throat Angles
20° for general work and soft steels – supplied as standard.
33° âBâ type for cutting brass, available on request.Grinding Dies
Only two angles are ground on Coventry dies, the throat angle and the rake angle and in the particular case of Holozone dies only the throat angle is ground. All dies in a set must be ground on the throat at the same time and since they cannot be accurately ground by hand, a die grinding fixture must be used.Marking & Materials
Each die is marked with: diameter, pitch, type of die and gauge number. Non-standard or special dies are marked with an SD number which should be quoted when re-ordering. When a set of dies has been re-ground several times by grinding the throat angle, the height of the cutting edge rises above centre. This condition must be rectified by grinding the rake angle until the die height is correct according to the number shown on the die. -
1/4″ (6mm) CHS COVENTRY DIE HEADRead moreWS Style Coventry Dies Head
Robust and reliable. Can be used on a variety of manual or automatic* machines. Can be supplied with any other straight or tapered shank. Takes standard Coventry type chasers. Repair parts readily available.
*Supplied with spring band closer. Set for single cut only.
