2.0-8.0mm UK CHUCK TYPE TAP WRENCH SET 5-PCE

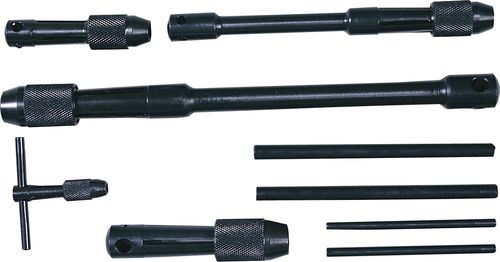

Kennedy Chuck Type Tap Wrench Set – English Type
English Type
Contents:
Standard length: 1.5 – 2.8, 2.2 – 5.0, 3.5 – 9.0mm.
Extra length: 2.2 – 5.0, 3.5 – 9.0mm.
Out of stock
SKU : KEN5189000K
Kennedy Chuck Type Tap Wrench Set – English Type
English Type
Contents:
Standard length: 1.5 – 2.8, 2.2 – 5.0, 3.5 – 9.0mm.
Extra length: 2.2 – 5.0, 3.5 – 9.0mm.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21020301
No. of Pieces : 5
Square Size (mm) : 2.0 – 8.0
UNSPSC Code : 27111720
Weight each : 895g
| Weight | 1 kg |
|---|
