18-35mm DIAL BORE GAUGE
Oxford Dial Indicating Bore Gauges
29mm 1 1/8â Dial Diameter
Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A âdatum pointâ can be set by using a setting ring of a known diameter or a micrometer. â Zeroâ the gauge to this datum point by rotating the bezel to align âzeroâ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ârockingâ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.

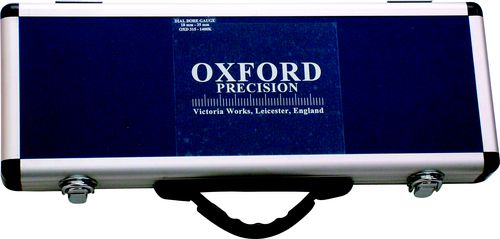

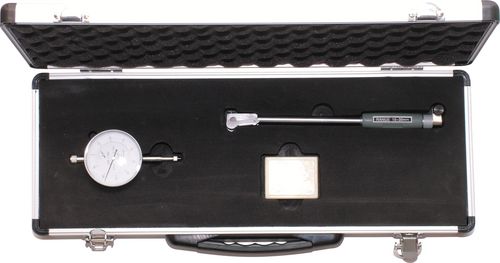

Supplied in a tough hard case.
Type – Metric
Graduation: 0.01mm
Face Dial: 57mm
Reading: 0-100
Travel Per Rev: 1mm
Total Travel: 3mm
Type – Inch
Graduation: 0.0005″
Face Dial: 2 3/16″
Reading: 0-25-0
Travel Per Rev: 0.050″
Total Travel: 0.25″
SKU : OXD3151400K
Oxford Dial Indicating Bore Gauges
29mm 1 1/8â Dial Diameter
Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A âdatum pointâ can be set by using a setting ring of a known diameter or a micrometer. â Zeroâ the gauge to this datum point by rotating the bezel to align âzeroâ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ârockingâ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.
Supplied in a tough hard case.
Type – Metric
Graduation: 0.01mm
Face Dial: 57mm
Reading: 0-100
Travel Per Rev: 1mm
Total Travel: 3mm
Type – Inch
Graduation: 0.0005″
Face Dial: 2 3/16″
Reading: 0-25-0
Travel Per Rev: 0.050″
Total Travel: 0.25″
Specification :
Bore Depth : 200
Brand : Oxford Precision
eCl@ss Code : 21170308
Range : 18-35
UNSPSC Code : 41111600
Weight each : 0.58kg
| Weight | 1 kg |
|---|
