16IRB-11W-QMA B-TYPE COATED INSERT
Rp352.000
ISO Threading Insert Designation
Whitworth, Internal Right Hand
A full range of sizes are available on request.
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Out of stock
SKU : YML1212217E
ISO Threading Insert Designation
Whitworth, Internal Right Hand
A full range of sizes are available on request.
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Specification :
Brand : Yamaloy
eCl@ss Code : 21010901
Grade : QMA
Insert Designation : 16 IR 11 W
TPI : 11
UNSPSC Code : 23242105

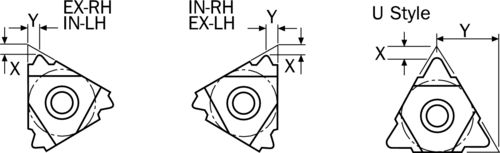

X : 1.1
Y : 1.5
| Weight | 1 kg |
|---|
