16IRB-1.0ISO-QMA B-TYPE COATED INSERT
Rp352.000
ISO Threading Insert Designation
ISO Metric, Internal Right Hand
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Out of stock
SKU : YML1211210Y
ISO Threading Insert Designation
ISO Metric, Internal Right Hand
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Specification :
Brand : Yamaloy
eCl@ss Code : 21010901
Grade : QMA
Insert Designation : 16 IR 1.00 ISO
TPI : 1.00
UNSPSC Code : 23242105
Weight per 10 : 70g

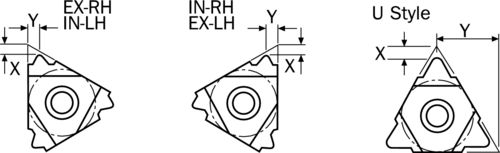

X : 0.6
Y : 0.7
| Weight | 1 kg |
|---|
