16ERB-AG55-QMA B-TYPE COATED INSERT
Rp352.000
ISO Threading Insert Designation
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Partial Profiles
External Right Hand
55°
Out of stock
SKU : YML1210542A
ISO Threading Insert Designation
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Partial Profiles
External Right Hand
55°
Specification :
Angle : 55°
Brand : Yamaloy
eCl@ss Code : 21010901
Grade : QMA
Insert Designation : 16 ER AG55
Pitch Range (mm) : 0.5-3.0
Pitch Range (TPI) : 48-8
UNSPSC Code : 23242105
Weight per 10 : 60g

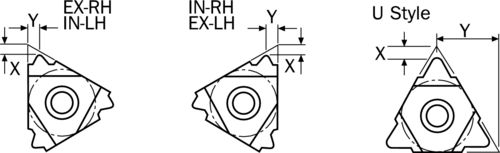

X : 1.2
Y : 1.7
| Weight | 1 kg |
|---|
