16ERB-A60-QMA B-TYPE COATED INSERT
Rp352.000
ISO Threading Insert Designation
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Partial Profiles
External Right Hand
60°
Out of stock
SKU : YML1210041Q
ISO Threading Insert Designation
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Partial Profiles
External Right Hand
60°
Specification :
Angle : 60°
Brand : Yamaloy
eCl@ss Code : 21010901
Grade : QMA
Insert Designation : 16 ER A60
Pitch Range (mm) : 0.5-1.5
Pitch Range (TPI) : 48-16
UNSPSC Code : 23242105
Weight per 10 : 60g

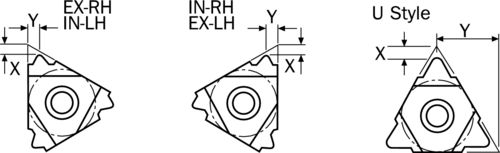

X : 0.8
Y : 0.9
| Weight | 1 kg |
|---|
