16ERB-8UN-QMA B-TYPE COATED INSERT
Rp352.000
ISO Threading Insert Designation
UN
External Right Hand
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Out of stock
SKU : YML1211552L
ISO Threading Insert Designation
UN
External Right Hand
Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Specification :
Brand : Yamaloy
eCl@ss Code : 21010901
Grade : QMA
Insert Designation : 16 ER 8 UN
TPI : 8
UNSPSC Code : 23242105
Weight each : 7g

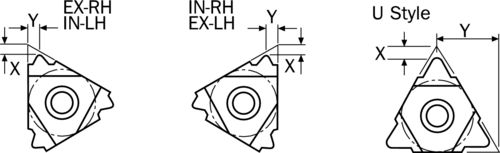

X : 1.2
Y : 1.6
| Weight | 1 kg |
|---|
