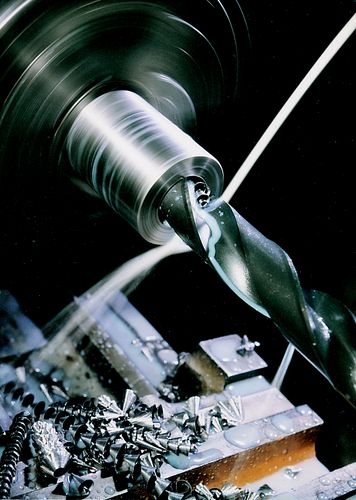

13/32″ HSS T/S DRILL
General Purpose HSS Taper Shank Drills, 1 Morse Taper – Inch Sizes
Suitable for single and multi-spindle drilling machines. The taper shank being the engineering industries recognised standard and most widely used method for holding and driving cutting tools. Manufactured to BS 328 : Part 1 : 1986, DIN 345RN, DIN 343RN.
SKU : SHR0252550Z
General Purpose HSS Taper Shank Drills, 1 Morse Taper – Inch Sizes
Suitable for single and multi-spindle drilling machines. The taper shank being the engineering industries recognised standard and most widely used method for holding and driving cutting tools. Manufactured to BS 328 : Part 1 : 1986, DIN 345RN, DIN 343RN.
Specification :
Brand : Sherwood
Diameter (inch) : 13/32″
eCl@ss Code : 21010101
Flute Length : 3 7/16″
Overall Length : 6 5/8″
Overall Weight : 0.087
UNSPSC Code : 23241639
Weight each : 87g
| Weight | 1 kg |
|---|
