12x20mm POINTED TREE CARBIDE BURR CUT 9
Kennedy Carbide Burrs – Pointed Tree
Pointed Tree
All sizes are nominal. Sizes marked * are 3mm shank, all others are 6mm shank.
Cut Numbers:
Cut 9 – Chipbreaker

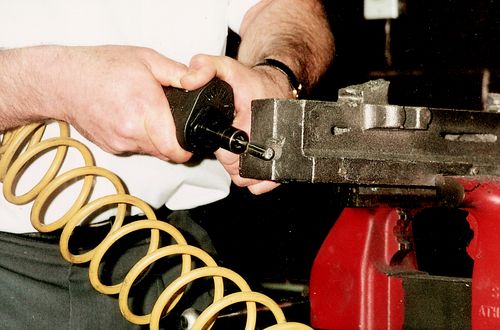

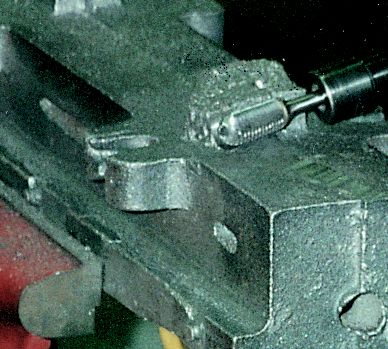

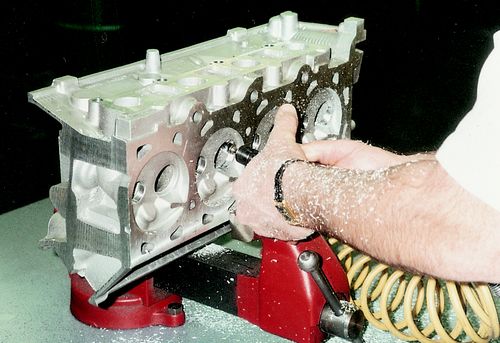

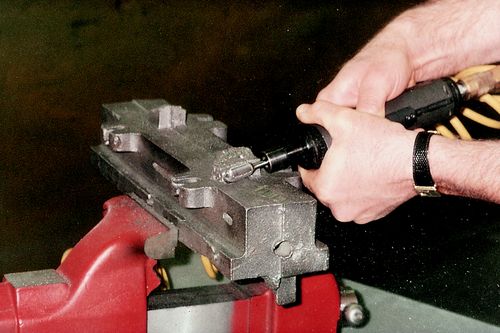

Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.
Out of stock
SKUÂ :Â KEN2104280K
Kennedy Carbide Burrs – Pointed Tree
Pointed Tree
All sizes are nominal. Sizes marked * are 3mm shank, all others are 6mm shank.
Cut Numbers:
Cut 9 – Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.
Specification :
Brand : Kennedy Industrial
Cut No. : 9
eCl@ss Code : 21010101
Head Size Dia. x L (mm)Â :Â 12 x 20
UNSPSC Code : 23251706
| Weight | 1 kg |
|---|
