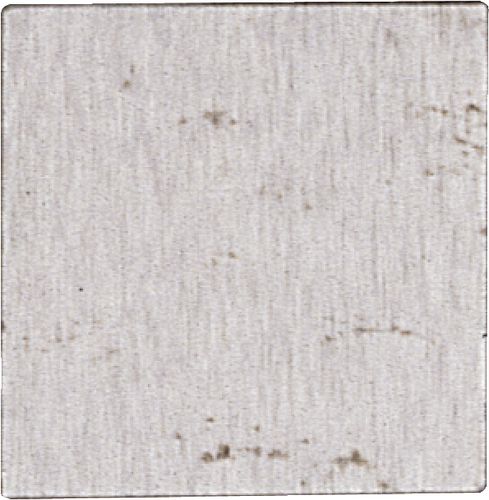

12mm SQ x 125mm COBALT TOOLBIT
Rp632.000
HSS Cobalt Toolbits
5% Cobalt Square Metric

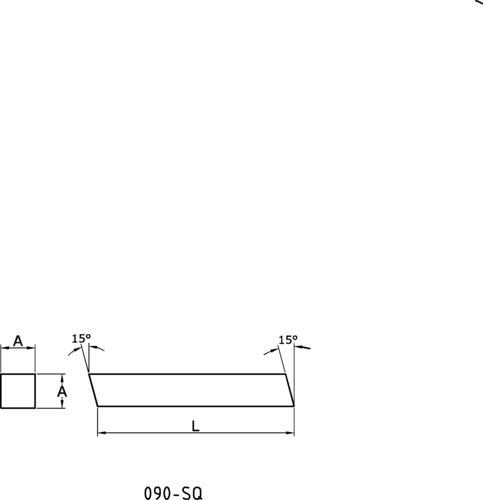

Cut faster, ‘stand up’ longer and reduce costs. Square and rectangular toolbits supplied with 15° bevelled ends. Parting-off blades supplied with 2° side taper, 10° bevel (top and bottom).
Out of stock
SKU : KEN0903810K
HSS Cobalt Toolbits
5% Cobalt Square Metric
Cut faster, ‘stand up’ longer and reduce costs. Square and rectangular toolbits supplied with 15° bevelled ends. Parting-off blades supplied with 2° side taper, 10° bevel (top and bottom).
Specification :
A : 12.00
Brand : Kennedy Industrial
eCl@ss Code : 21010902
Lumens : 125.0
UNSPSC Code : 23242104
Weight each : 152g
| Weight | 1 kg |
|---|
