125mm XP-45C FACE-HOG MILLING CUTTER
XP-45C âFace Hogâ Milling Cutters
Super Positive 45° approach milling cutter, angle decreases cutting forces and allows a quick feed in a limited capacity machine. Clamp style insert pocket with shim seats to protect the body in case of accident. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear.
Through coolant as standard.
Out of stock
SKU : IND1397660K
XP-45C âFace Hogâ Milling Cutters
Super Positive 45° approach milling cutter, angle decreases cutting forces and allows a quick feed in a limited capacity machine. Clamp style insert pocket with shim seats to protect the body in case of accident. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear.
Through coolant as standard.

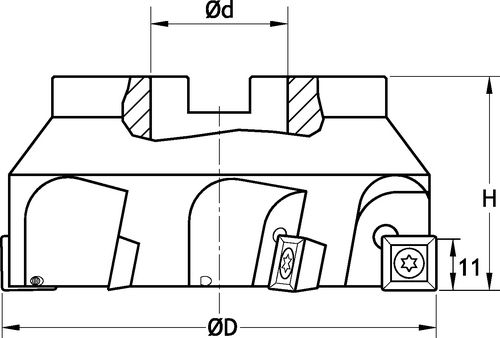

Specification :
Brand : Indexa
D : 40
D1 : 138
Diameter (mm) : 125
eCl@ss Code : 28039190
Lumens : 63
Overall Weight : 3.3
Supplier Part No. : 847S.125PIZ/C
UNSPSC Code : 23242106
Z : 7
| Weight | 1 kg |
|---|
