125mm TRI-SQ MILLING CUTTER (VER II)
Indexa âTri Squareâ 90° Shell Mills – For TPKN 2204
âTri Squareâ 90° Shell Mills for TPKN 2204

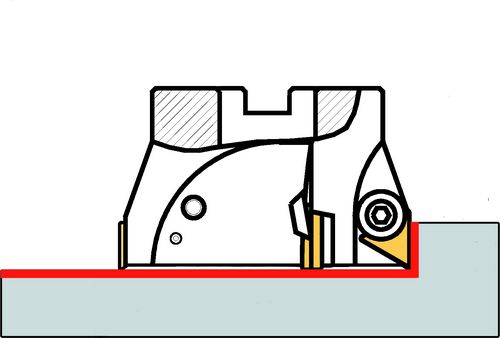

Uses top clamping triangular inserts to produce a 90° shoulder at the edge of a milled face. This is of major benefit when taking a number of cuts across a face as the shoulder produced is without steps.
Out of stock
SKU : IND1393480K
Indexa âTri Squareâ 90° Shell Mills – For TPKN 2204
âTri Squareâ 90° Shell Mills for TPKN 2204
Uses top clamping triangular inserts to produce a 90° shoulder at the edge of a milled face. This is of major benefit when taking a number of cuts across a face as the shoulder produced is without steps.
Specification :
Brand : Indexa
d : 40
Dia. (mm) : 125
eCl@ss Code : 28039190
F : 63
L3 : 18
Overall Weight : 2.77
Supplier Part No. : 0140.90.125
UNSPSC Code : 23242106
Weight each : 2777g
Z : 6
