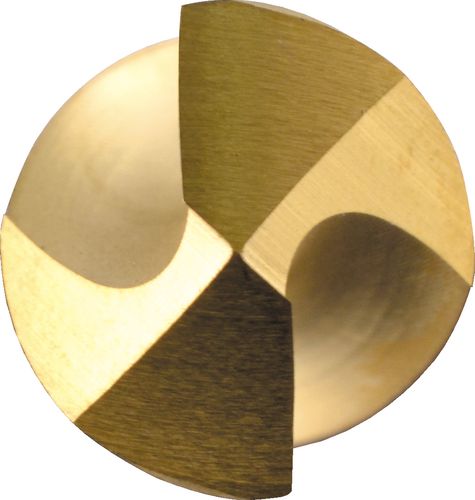

12.00mm TiN COATED STUB DRILL
HSS TiN Coated Stub Drills
Series 2001 Metric
General purpose drill for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. TiN coating provides longer tool life or increased cutting speeds. Point angle: 118°, helix angle: normal, web thickness: normal, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328, DIN 1897 RN.
SKU : SWT1252120A
HSS TiN Coated Stub Drills
Series 2001 Metric
General purpose drill for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. TiN coating provides longer tool life or increased cutting speeds. Point angle: 118°, helix angle: normal, web thickness: normal, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328, DIN 1897 RN.
Specification :
Brand : Swiss Tech
Diameter : 12.00 | mm
eCl@ss Code : 21010101
Overall Depth : 12
Overall Length : 100
Overall Weight : 0.068
Overall Width : 12
Supplier Part No. : SWT1252120A
UNSPSC Code : 23241606
| Weight | 1 kg |
|---|
