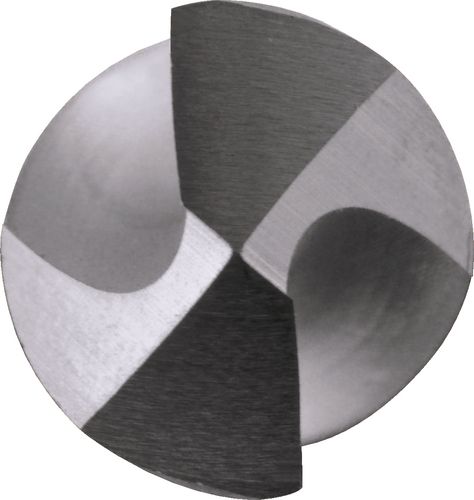

12.00mm HIGH HELIX DRILL FOR ALUMINIUM
HSS-Co Straight Shank High Helix Drills
High helix drills, to drill long-chipping materials like aluminium, aluminium alloys, copper and plastics. Point angle: 130°. Helix angle: high. Web thickness: normal. Relief angle: normal. Tolerance of diameter: h8. Tolerance of shank: f11. Manufactured to DIN 338 RN.
Out of stock
SKU : SWT1250320A
HSS-Co Straight Shank High Helix Drills
High helix drills, to drill long-chipping materials like aluminium, aluminium alloys, copper and plastics. Point angle: 130°. Helix angle: high. Web thickness: normal. Relief angle: normal. Tolerance of diameter: h8. Tolerance of shank: f11. Manufactured to DIN 338 RN.
Specification :
Brand : Swiss Tech
Diameter (mm) : 12.00
eCl@ss Code : 21010101
Overall Weight : 0.083
Supplier Part No. : SWT1250320A
UNSPSC Code : 23241634
| Weight | 1 kg |
|---|
