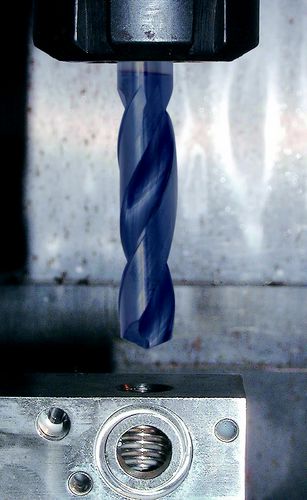

11.00mm Q-COAT COOLANT CARBIDE DRILL 3xD
Solid Carbide Q-Coat Drill
For drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic, self-centering.
Point angle: 140°, tolerance of diameter: m7, tolerance of shank: h6. Manufactured to DIN 6537.
Out of stock
SKUÂ :Â SWT1583110C
Solid Carbide Q-Coat Drill
For drilling into general steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous heavy and light metal, and abrasive plastic, self-centering.
Point angle: 140°, tolerance of diameter: m7, tolerance of shank: h6. Manufactured to DIN 6537.
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010101
Overall Weight : 0.12
Supplier Part No. : SWT1583110C
UNSPSC Code : 23241605
| Weight | 1 kg |
|---|
