100mm XP-90C 4-SQ MILLING CUTTER
XP-90C â4 Squareâ 90° Shell Mills

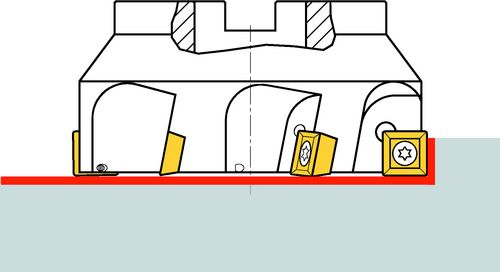

Positive 90° cutter with an exact angle of 90°, square insert allowing depth passes and high feed per teeth. Torx style insert pocket with shim seats to protect the body in case of accident. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard.
XP-90C â4 Squareâ 90° Shell Mills for SDMT 12 inserts
Out of stock
SKU : IND1397540K
XP-90C â4 Squareâ 90° Shell Mills
Positive 90° cutter with an exact angle of 90°, square insert allowing depth passes and high feed per teeth. Torx style insert pocket with shim seats to protect the body in case of accident. Plasma Ion coating offers longer tool life and greater hardness that is more resistant to wear. Through coolant as standard.
XP-90C â4 Squareâ 90° Shell Mills for SDMT 12 inserts

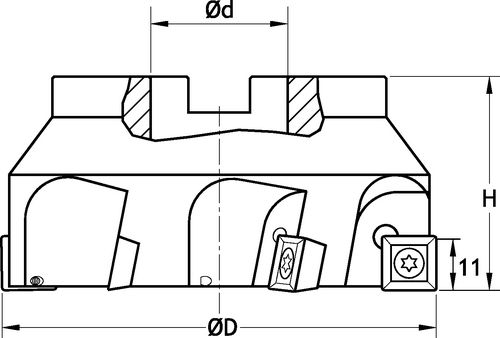

Specification :
Brand : Indexa
D : 100
Diameter (mm) : 32
eCl@ss Code : 28039190
H : 50
Overall Weight : 1.66
Supplier Part No. : 900.100PIZ/C
UNSPSC Code : 23242106
Weight each : 1669g
Z : 6
| Weight | 1 kg |
|---|
