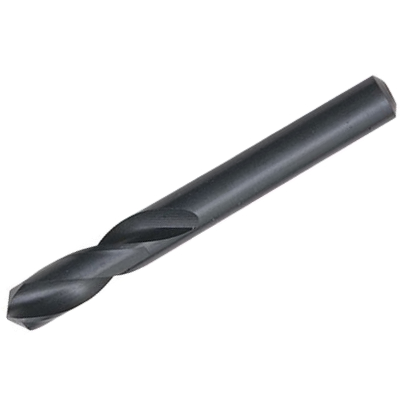

1.80mm HSS S/S STUB DRILL
Sherwood HSS General Purpose Stub Drills – Metric Sizes
Series S100 – Metric
General purpose drills for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10° – 20°, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BSâ328: Part 1: 1986/DIN 1897.
Out of stock
SKU : SHR0251236S
Sherwood HSS General Purpose Stub Drills – Metric Sizes
Series S100 – Metric
General purpose drills for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10° – 20°, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BSâ328: Part 1: 1986/DIN 1897.
Specification :
Brand : Sherwood
Diameter (mm) : 1.80 | mm
eCl@ss Code : 21010101
Overall Depth : 10
Overall Length : 75
Overall Weight : 0.01
Overall Width : 10
UNSPSC Code : 23241606
| Weight | 1 kg |
|---|
