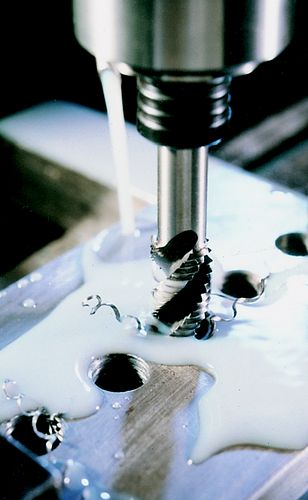

1/4″x28 UNF HSS GT SPIRAL POINT TAP
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
SKUÂ :Â SHR0851110E
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Shank Diameter : 6.30
Size – Pitch : 1/4″ x 28
Square A/FÂ :Â 5.00
UNSPSC Code : 27112806
Weight each : 15g
| Weight | 1 kg |
|---|
