Relaunch Promotion
Product Showcase

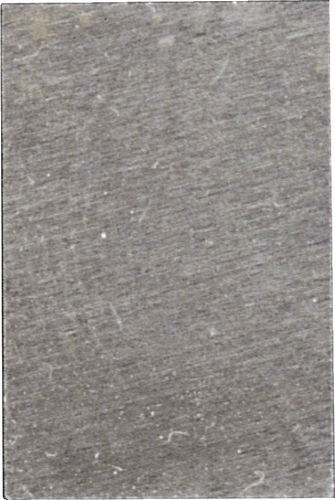

1/2″x3/4″x6″ RECTANGULAR 5% COBALT TOOLBIT
HSS Cobalt Toolbits
5% Cobalt Rectangular Inch
Cut faster, ‘stand up’ longer and reduce costs. Square and rectangular toolbits supplied with 15° bevelled ends. Parting-off blades supplied with 2° side taper, 10° bevel (top and bottom).
SKU : KEN0905240K
HSS Cobalt Toolbits
5% Cobalt Rectangular Inch
Cut faster, ‘stand up’ longer and reduce costs. Square and rectangular toolbits supplied with 15° bevelled ends. Parting-off blades supplied with 2° side taper, 10° bevel (top and bottom).

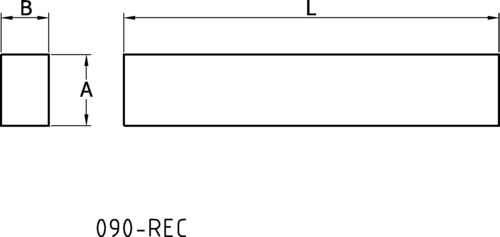

Specification :
B x A : 1/2″ – 3/4″
Brand : Kennedy Industrial
eCl@ss Code : 21010902
Lumens : 6″
UNSPSC Code : 23242104
Weight each : 315g
| Weight | 1 kg |
|---|
