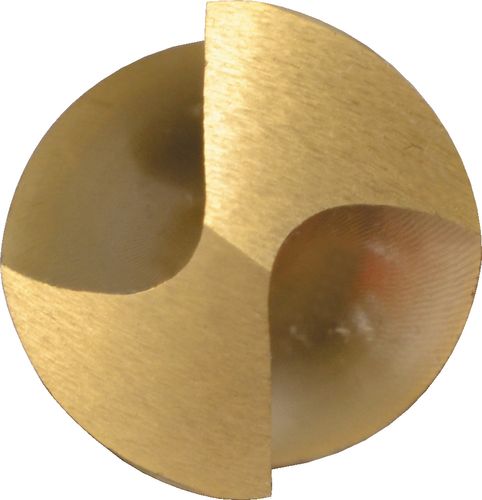

1/16″ TiN TIPPED JOBBER DRILL
Rp26.000
HSS TiN Tipped Jobber Drills – Inch
Inch
Bright body with TiN coating on working part. For drilling in steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: normal, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328, DIN 338.
Out of stock
SKUÂ :Â SWT1255002A
HSS TiN Tipped Jobber Drills – Inch
Inch
Bright body with TiN coating on working part. For drilling in steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: normal, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328, DIN 338.
Specification :
Brand : Swiss Tech
Diameter (inch)Â :Â 1/16″
eCl@ss Code : 21010101
Overall Weight : 0.001
Supplier Part No. : SWT1255002A
UNSPSC Code : 23241634
| Weight | 1 kg |
|---|
