1.1/8″ HSS T/S DRILL

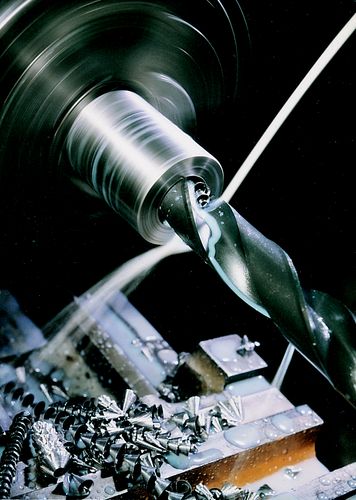

Sherwood General Purpose HSS Taper Shank Drills, 3 Morse Taper – Inch Sizes
Series T100 – Inch
Suitable for single and multi-spindle drilling machines. The taper shank being the engineering industries recognised standard and most widely used method for holding and driving cutting tools. Manufactured to BS 328 : Part 1 : 1986, DIN 345RN, DIN 343RN.
SKUÂ :Â SHR0252552Z
Sherwood General Purpose HSS Taper Shank Drills, 3 Morse Taper – Inch Sizes
Series T100 – Inch
Suitable for single and multi-spindle drilling machines. The taper shank being the engineering industries recognised standard and most widely used method for holding and driving cutting tools. Manufactured to BS 328 : Part 1 : 1986, DIN 345RN, DIN 343RN.
Specification :
Brand : Sherwood
Diameter (inch)Â :Â 1 1/8″
eCl@ss Code : 21010101
Flute Length : 6 7/8″
Overall Length : 11 5/8″
Overall Weight : 0.835
UNSPSC Code : 23241639
Weight each : 833g
| Weight | 1 kg |
|---|
