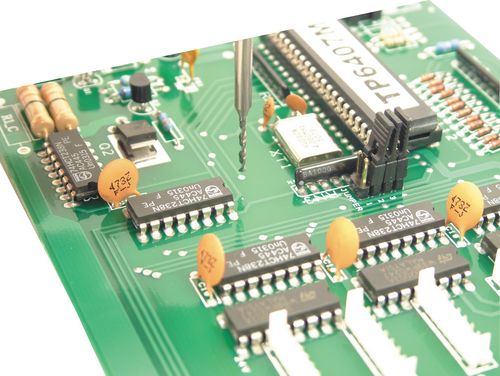

1.00mm CARBIDE PCB DRILL
Rp93.000
Sherwood Solid Carbide Printed Circuit Board Drills
Solid carbide printed circuit board drills. Suitable for drilling through printed circuit boards.
Shank diameter 3.175mm, 38mm overall length. Manufactured to DIN 1899.
Out of stock
SKU : SHR1583016R
Sherwood Solid Carbide Printed Circuit Board Drills
Solid carbide printed circuit board drills. Suitable for drilling through printed circuit boards.
Shank diameter 3.175mm, 38mm overall length. Manufactured to DIN 1899.
Specification :
Brand : Sherwood
Diameter (mm) : 1.00
eCl@ss Code : 21010101
Flute Length : 10.5
Overall Weight : 0.003
UNSPSC Code : 23241606
| Weight | 1 kg |
|---|
