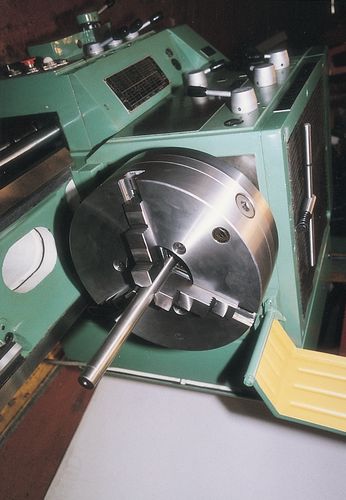

003504 100mm 3-JAW STEELCHUCK REAR MOUNT

Self-Centring Geared Scroll Lathe Chucks – Model 003-504

Model 003-504 – Rear mounting

Steel 3 Jaw Plain Back Chuck
DIN 6350 (form A).
Three jaw plain back with adaptor recess.

Universal. Scrolls are forged, balanced and hardened. Thread flanks are ground on both sides. All models have grease nipples for easy lubrication and are supplied with two sets of solid jaws – internal and external stepped.

Out of stock

SKU : IND4751630K

Self-Centring Geared Scroll Lathe Chucks – Model 003-504

Model 003-504 – Rear mounting

Steel 3 Jaw Plain Back Chuck
DIN 6350 (form A).
Three jaw plain back with adaptor recess.

Universal. Scrolls are forged, balanced and hardened. Thread flanks are ground on both sides. All models have grease nipples for easy lubrication and are supplied with two sets of solid jaws – internal and external stepped.

Specification :
Brand : Indexa
Chuck Size (mm) : 100
eCl@ss Code : 21020490
Overall Depth : 105
Overall Length : 80
Overall Weight : 3
Overall Width : 105
Supplier Part No. : 3504
Through Hole : 20
UNSPSC Code : 27112807
Weight each : 3.0kg

Weight 1 kg
SKU: IND4751630K Categories: , , , ,
