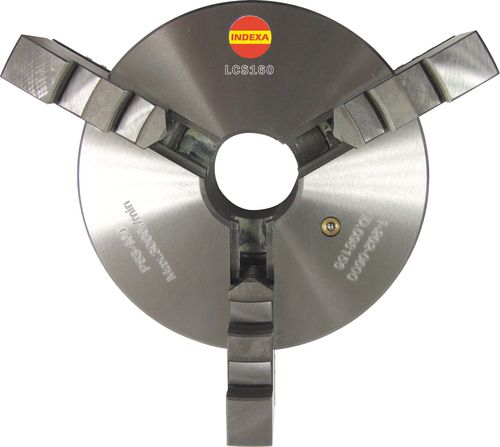

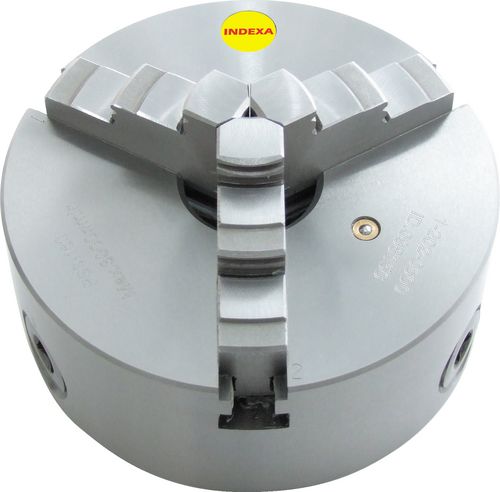

003204 160mm 3-JAW C/I CHUCK REAR MOUNT

Indexa Self-Centring Geared Scroll Lathe Chucks – Model 003-204

Model 003-204 – Rear mounting

Cast Iron 3 Jaw Plain Back Chuck
DIN 6350 (form A).
Three jaw plain back with adaptor recess.

Produced to a well proven design for universal application. Scrolls are forged, balanced and hardened. Thread flanks are ground on both sides. All models have grease nipples for easy lubrication and are supplied with two sets of solid jaws – internal and external stepped.

Out of stock

SKU : IND4751060K

Indexa Self-Centring Geared Scroll Lathe Chucks – Model 003-204

Model 003-204 – Rear mounting

Cast Iron 3 Jaw Plain Back Chuck
DIN 6350 (form A).
Three jaw plain back with adaptor recess.

Produced to a well proven design for universal application. Scrolls are forged, balanced and hardened. Thread flanks are ground on both sides. All models have grease nipples for easy lubrication and are supplied with two sets of solid jaws – internal and external stepped.

Specification :
Brand : Indexa
Chuck Size (mm) : 160
eCl@ss Code : 21020490
Overall Depth : 165
Overall Length : 135
Overall Weight : 9.8
Overall Width : 165
Supplier Part No. : 3204
Through Hole : 42
UNSPSC Code : 27112807
Weight each : 9.78kg

Weight 1 kg
SKU: IND4751060K Categories: , , , ,
