0.40mm CARBIDE PCB DRILL
Rp107.000

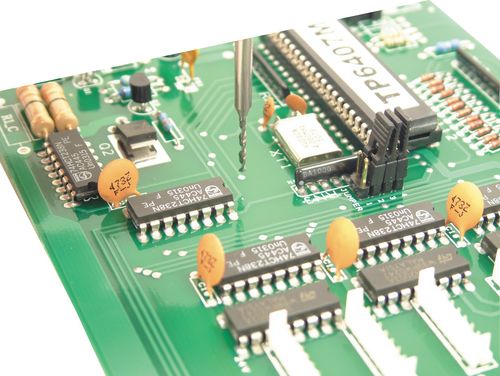

Sherwood Solid Carbide Printed Circuit Board Drills
Solid carbide printed circuit board drills. Suitable for drilling through printed circuit boards.
Shank diameter 3.175mm, 38mm overall length. Manufactured to DIN 1899.
Out of stock
SKU : SHR1583004D
Sherwood Solid Carbide Printed Circuit Board Drills
Solid carbide printed circuit board drills. Suitable for drilling through printed circuit boards.
Shank diameter 3.175mm, 38mm overall length. Manufactured to DIN 1899.
Specification :
Brand : Sherwood
Diameter (mm) : 0.40
eCl@ss Code : 21010101
Flute Length : 5.5
Overall Weight : 0.004
UNSPSC Code : 23241606
| Weight | 1 kg |
|---|
